Beskrivelse

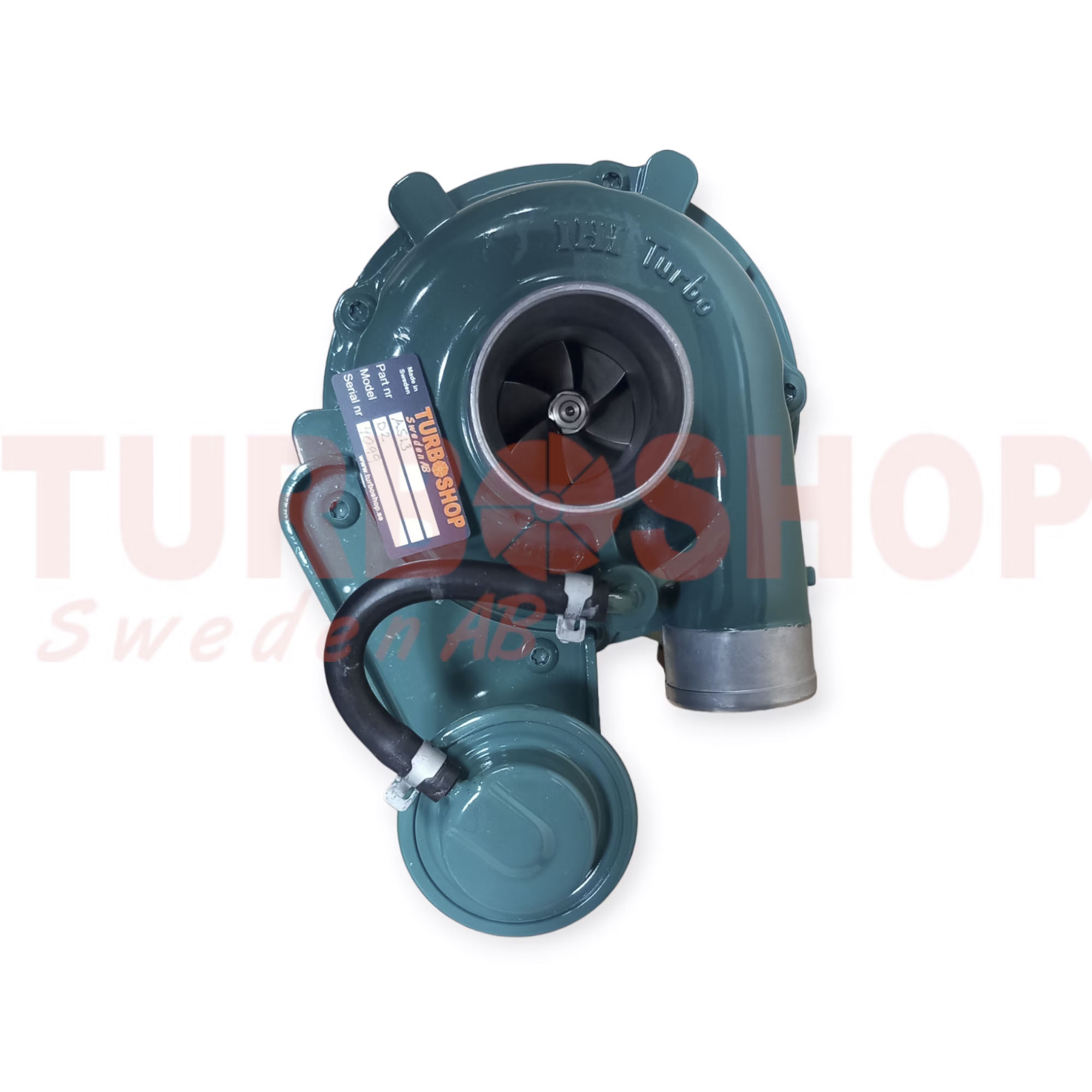

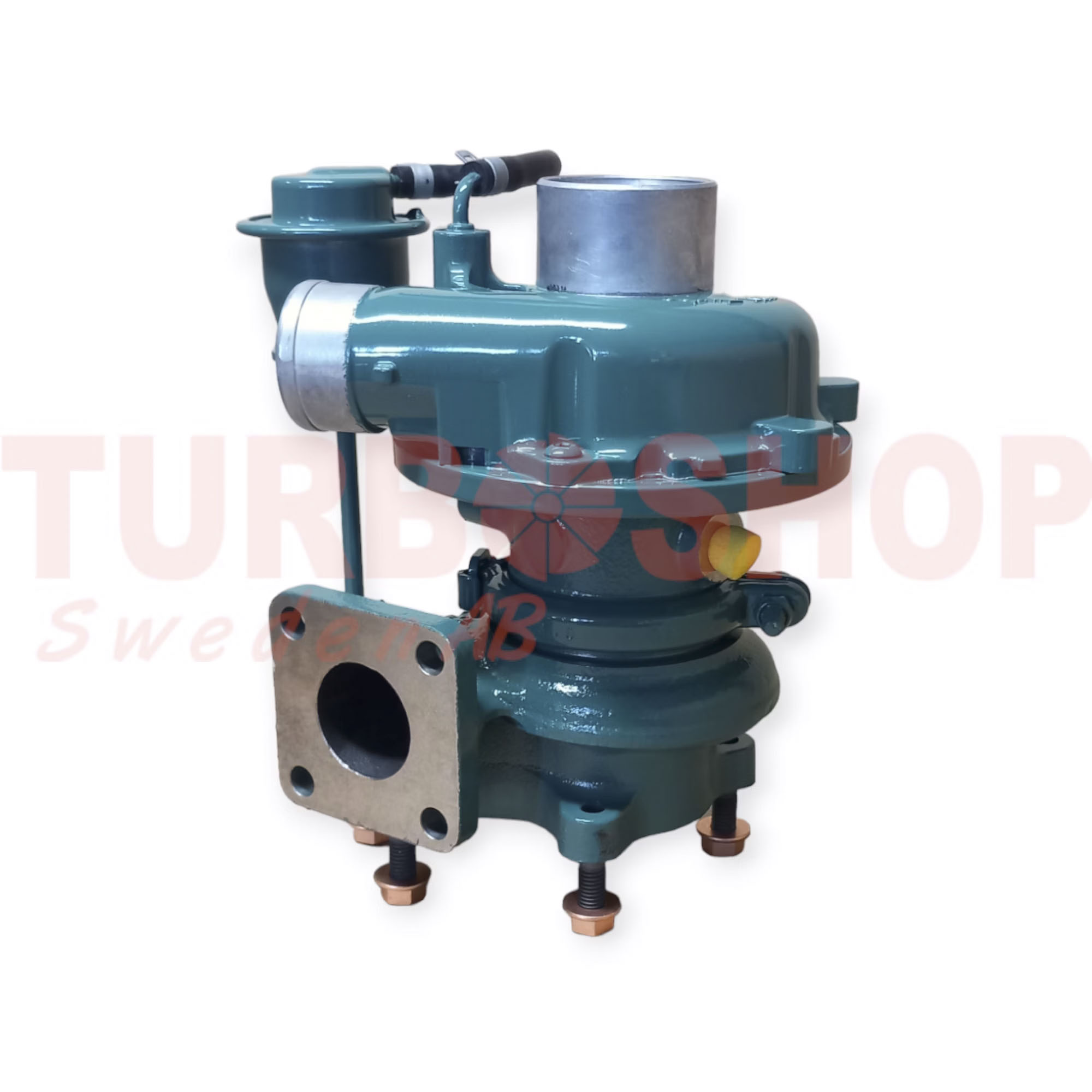

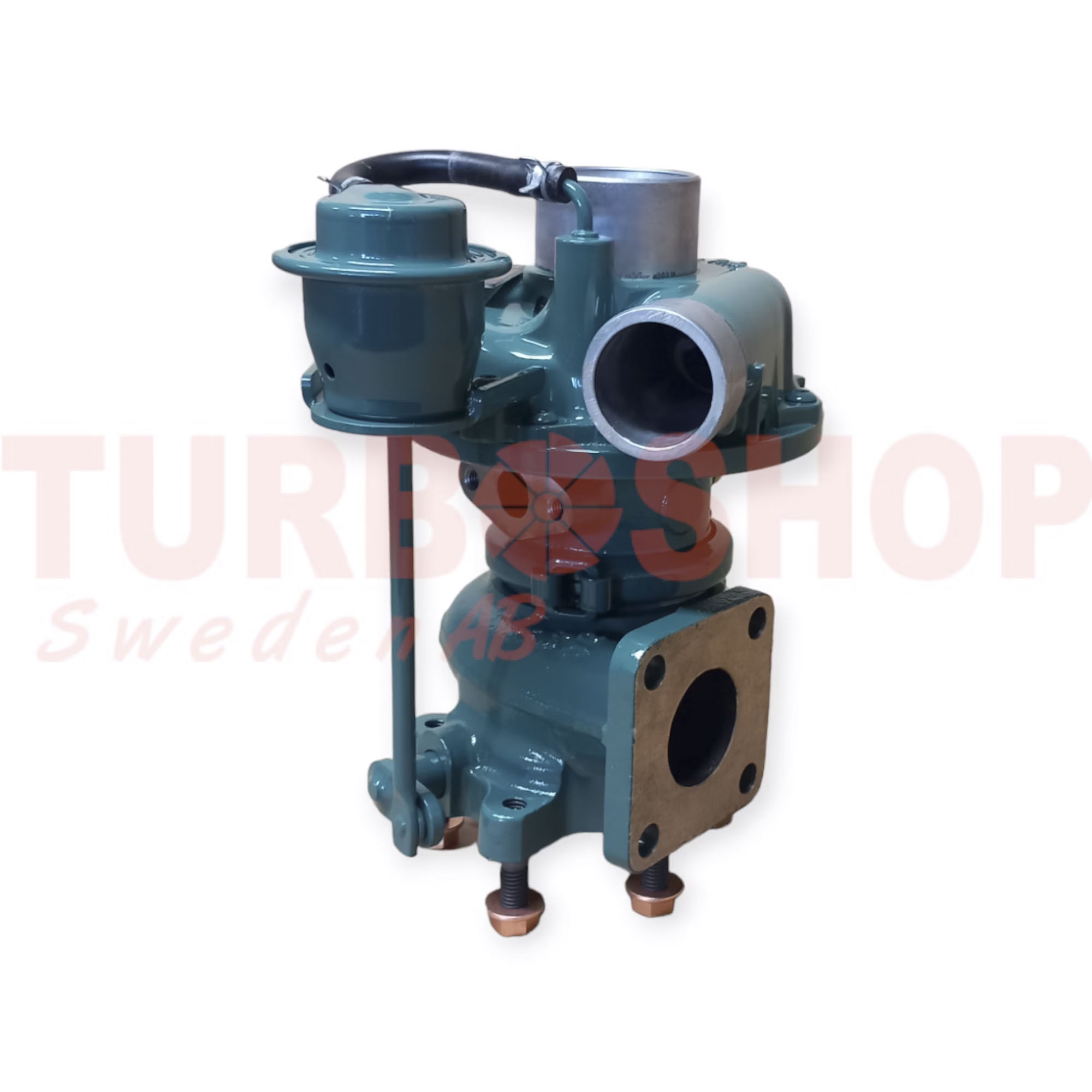

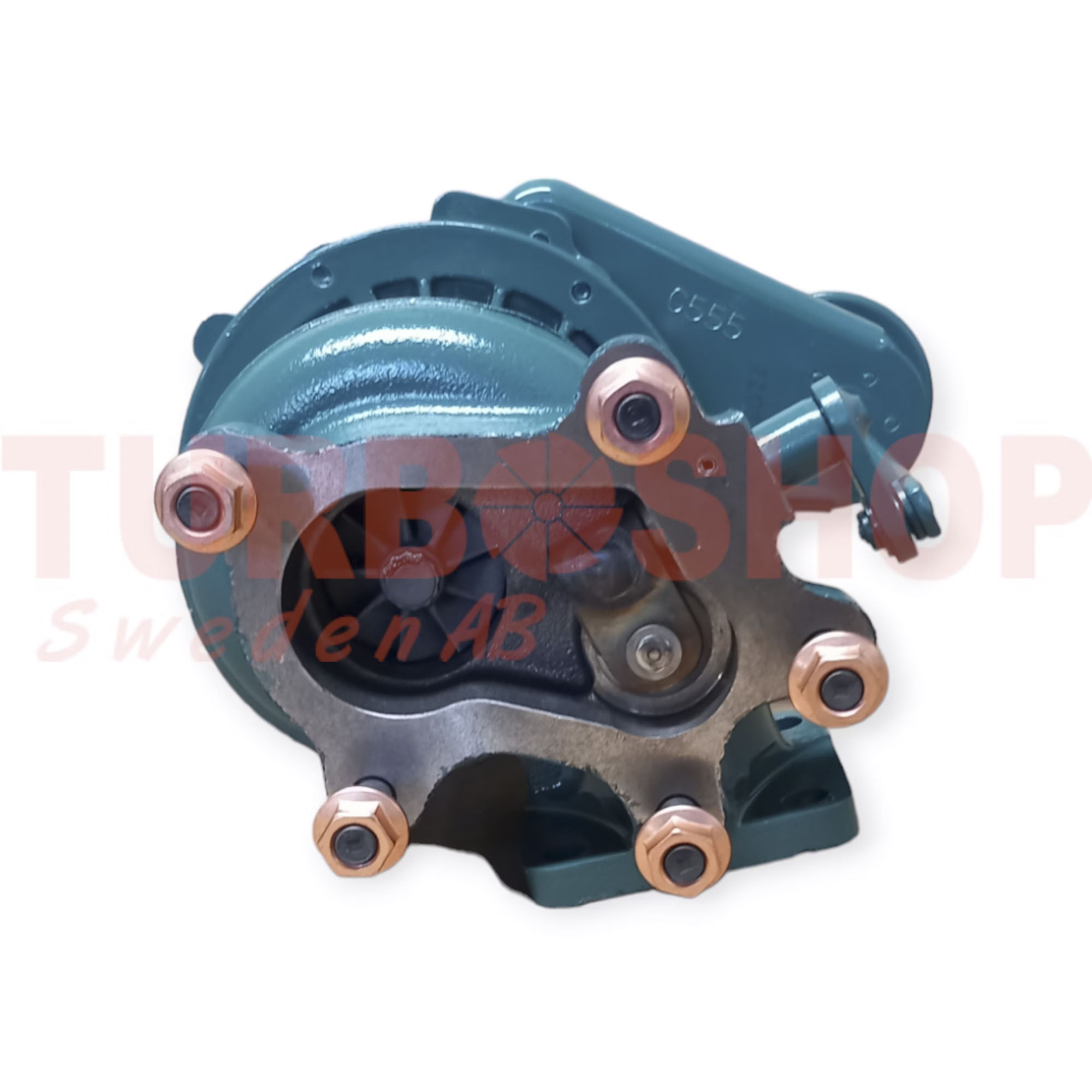

AS13 Volvo Penta / Perkins truck ombytningsturbo, OEM nummer :135756190,13575-6190, 3801341,4T-511,4T511,F41CAD-S0083B,F41CAD-S0083G
Volvo penta
- D2-75
- D2-75A
- D2-75B
- D2-75C
- D2-75F
D2-60F
OEM : 3801341
Turbonummer / Originalnummer / Turbofakta :
| Artikelnummer : | VB420083,AS13 |
| Ersättare | VA420083, VB420093, VC420083, VD420083 |
| Originalnummer : | 135756190, 13575-6190, 3801341, 4T-511, 4T511, F41CAD-S0083B, F41CAD-S0083G, F41CADS0083B, F41CADS0083G |
| Beskrivning | Agricultural Engines, Industrial, Perkins truck, Volvo Penta Boat (Marine) D2-75 |
| V-SPEC | AS13 |
| CHRA | NZ870564 (F41CAD-S0057C, F41CADS0057C) |
| Turbo Model | RHF4-46001P10NHBRL342CCZ |
| Engine Model | N844L-T |
| Fuel | Diesel |
| Engine Manufacturer | Shibaura |
| Angle α (compressor housing) | 80° |
| Angle β (turbine housing) | 152° |
| Bearing Housing | (Oil Cooled)(1450040450, 1900011259) $85.00 NEW IN STOCK |
| Turbine Wheel | (Ind. 46.4 mm, Exd. 35.43 mm, Trm 4.67, 9 Blades)(1450040435 |
| Comp. Wheel | (Ind. 31.14 mm, Exd. 45.97 mm, Trm 4.59, 5+5 Blades, Superback)(1450040402, 1200016519) |
| Back plate | (1300016149) |
| Heat shield Number | (1450040341, 2030016050) |
| Repair Kit | NH449813 (1450040751, 5000080027) |
| Turbine Housing AR | 10 |
| Actuator | (2061016851) |
| Gasket (turbine inlet) | 210385 (2445130, 2258533)(Stainless Steel) |
| Gasket (turbine outlet) | 210393 (2445136) |
| Gasket (oil outlet) | 210636 (210019)(2485006)(Paper) |
| Tillverkare : | IHI |
Ombytningsturbo = Den gamle turbo skal returneres til os efter udskiftningen.
